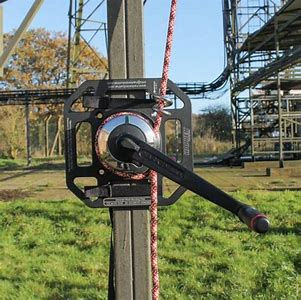

Harken Rigger Winch 500

Harken Rigger Winch 500

SKU: 632835642834572

Riggers Winch 500 = INRW500Riggers Winch 200 = INRW200A LIGHTWEIGHT CE CERTIFIED PORTABLE WINCHThe Riggers Winch provides the user with a lightweight, CE certified, portable winch mounted to a robust adaptor plate. Offered in two (2) sizes, the single-speed 200 model weighs only 4 kg (8 lb) and has a maximum rated load of 1.96 kN. The 2-speed 500 model weighs just 7 kg (15.4 lb). Its maximum rated load of 4.90 kN maximizes operator pulling power by up to 40 times. Multiple mounting options provide versatility when working in challenging or remote environments and cleaning instructions.


Simple to use and ideal for diverse applications.

  • Utility masts
  • Telecoms
  • Marine
  • Wind turbine transition piece davits
  • Stage and theater rigging
  • Construction
  • Confined space
  • Access and rescue

Riggers winch 500 includes: Universal mounting plate, 40.2 Harken winch and Harken 10 inch winch handle

Sculpted to remove excess weight and provide multiple attachment points, whilst maintaining strength. The rope guide ensures correct alignment and loading of the winch for maximum efficiency.

Aluminum 40.2 winch with 17- 4PH stainless steel load-carrying gears and pins for strength and durability. Unique drum design for maximum grip on the rope.

Fiber Rope
The winch is designed for use with fiber rope up to 12 mm (1/2″) in diameter, reducing weight and allowing alignment to the load. Smooth surfaces and chafe-free design are sympathetic to fiber rope.
For use with multiple attachments depending on the environment and industry—from ratchet straps, M10 bolts, karabiners, to scaffold clamps.

CE certified under EN13157 (Machinery Directive) with a maximum working load up to 500 kg (1102.3 lb) and a breaking load of 2800kg (6172 lb).

Riggers winch 500 includes: Universal mounting plate, 40.2 Harken winch and Harken 10 inch winch handle.

Q: What is the maximum line operating length?
A: There is no maximum line length for use with the Riggers Winch. The length of rope you use is your only limitation.

Q: Can the winch be fitted mid rope?
A: Yes, the pigtail allows the line to be installed without feeding the end of the line through.

Q: What is the maximum diameter rope that can be used with the Riggers 500?
A: The winch can be used 8-12mm kernmantle semi-static rope (EN1891).

Q: Is the Riggers Winch suitable for human suspension?
A: Yes, but a back up device such as a Petzl ASAP needs to used to protect the person/s being lifted in the event of the failure of the winch. Or in technical speak:

In accordance with Directive 2009/104/EC persons may be lifted only by means of work equipment and accessories provided for that purpose. Without prejudice to Article 5 of Directive 89/391/EC, exceptionally, work equipment which is not specifically designed for the purpose of lifting persons may be used for that purpose, provided appropriate action has been taken to ensure safety in accordance with national legislation and/or practice providing for appropriate supervision.

Q: What is the Breaking Load and Safe Working Load for the Riggers 500?
A: Breaking load – 2800kg / SWL for goods lifting – 500kg to EN13157 Machinery directive
/ SWL for tensioning – 500kg

Q: Is the kit supplied with the attachment fittings?
A: No. Attachments and fittings are dependent on operational use.

Q: Can I service my own Riggers Winch?
A: Yes. However, service and winch maintenance must be in accordance with the Harken service instructions and using Harken-approved replacement parts and consumables.

Q: Which drill is recommended for use with the winch when purchased with the drill adapter?
A: The Milwaukee M18FRAD-0 M18 FUEL Super Hawg Right Angle Drill Driver. It is normally supplied with an 18V 5Ahr battery offering great battery life. Better still, Milkwaukee will be introducing a 9Ahr battery (18V) around September, which will offer even better power and life.


Other drills that is compatible


Makita, DA4031, Angle Drill, 1/2 In, 10 A


DEWALT DCD460BR 60V MAX FLEXVOLT 1/2-in Cordless Stud & Joist Drill TOOL ONLY (Renewed)






    If you have any servicing issue please bring back to CYCC Access Systems to check.


    Local self collection is preferred
